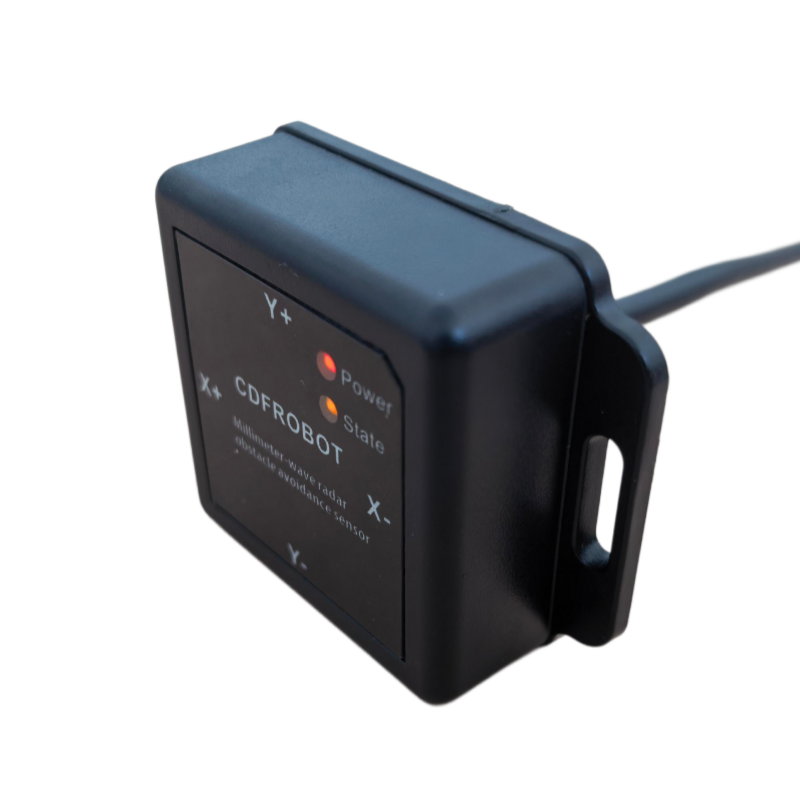

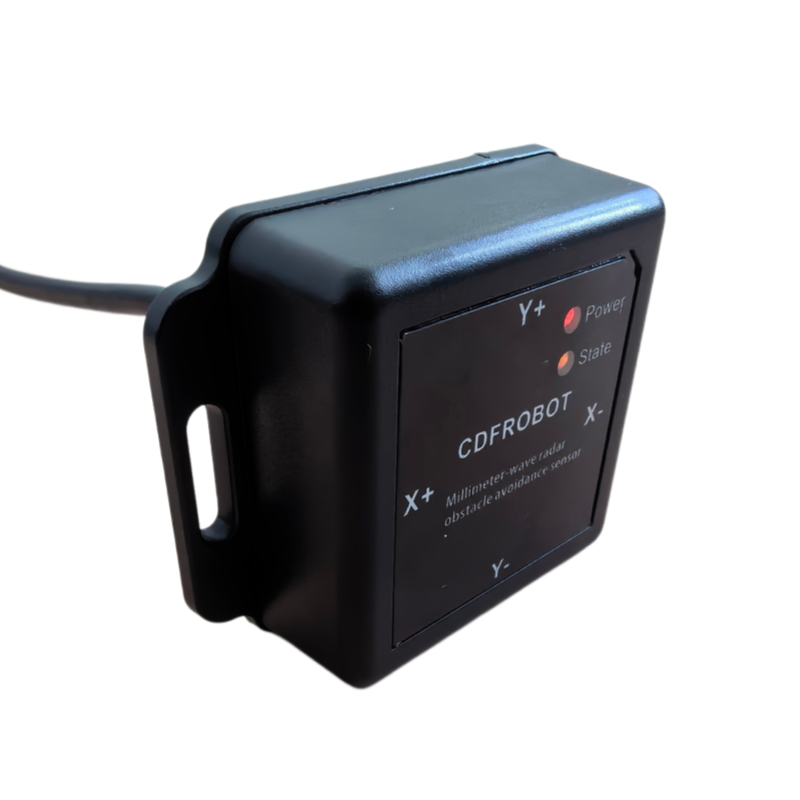

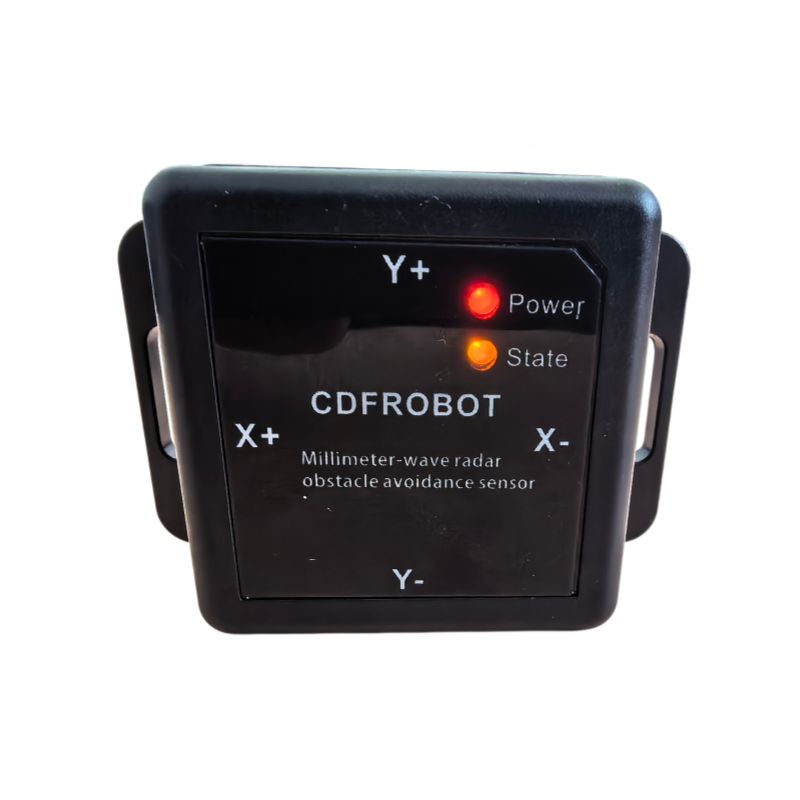

60GHz Millimeter Wave Obstacle Avoidance Radar Sensor with 4.5m Detection Range and 120° Field of View, Supporting RS485 Modbus Protocol

Model:CCF-MWR1-4M

  • Product description
  • Product performance
  • Specifications
  • Related download
  • Video display

Fully solid-state design, compatible with foreign products of the same specification;

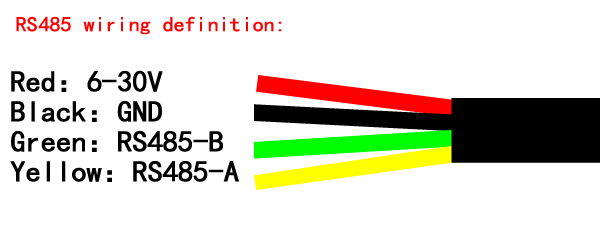

Supports RS485 interface output;

Support remote setup and debugging via Bluetooth APP;

Support for enabling or disabling detection of static targets;

Support simultaneous output of distance and angle data;

Support sensitivity and credibility parameter settings, etc;

Equipped with an advanced 60G millimeter-wave chip, it boasts strong penetration capabilities and is impervious to dust and smoke;

Protection level: IP67;

Industrial-grade three-proof design, wide voltage range, low power consumption;
